X-Treme Trail Maker Elite Max 36V Mountain E-Bike Aluminum
X-Treme Trail Maker Elite Max 36V Mountain E-Bike Aluminum
26 in stock
Couldn't load pickup availability

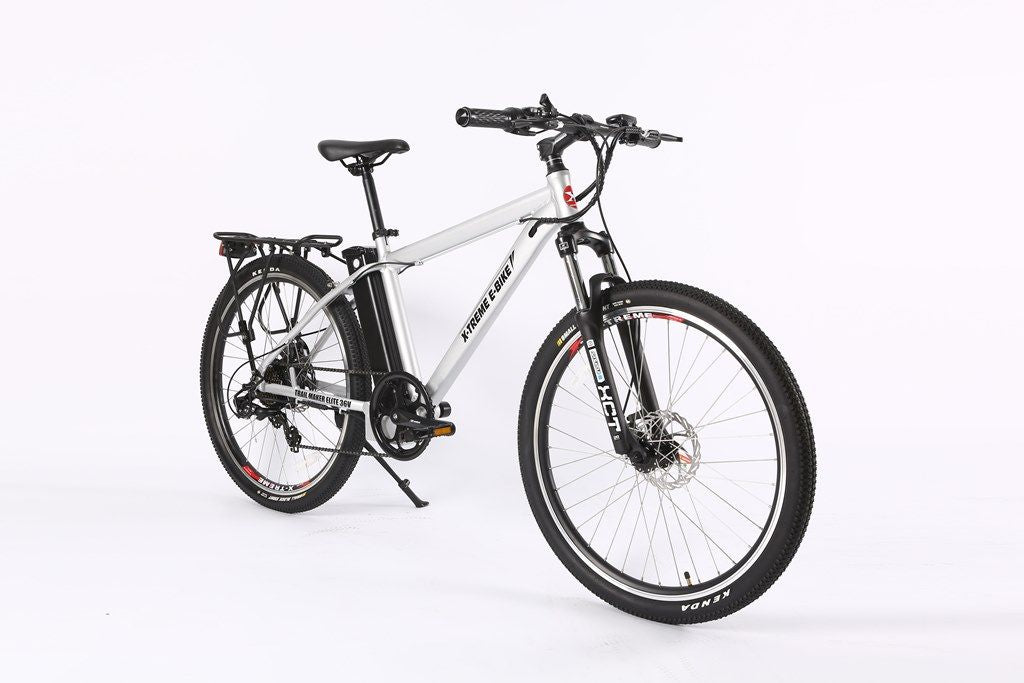

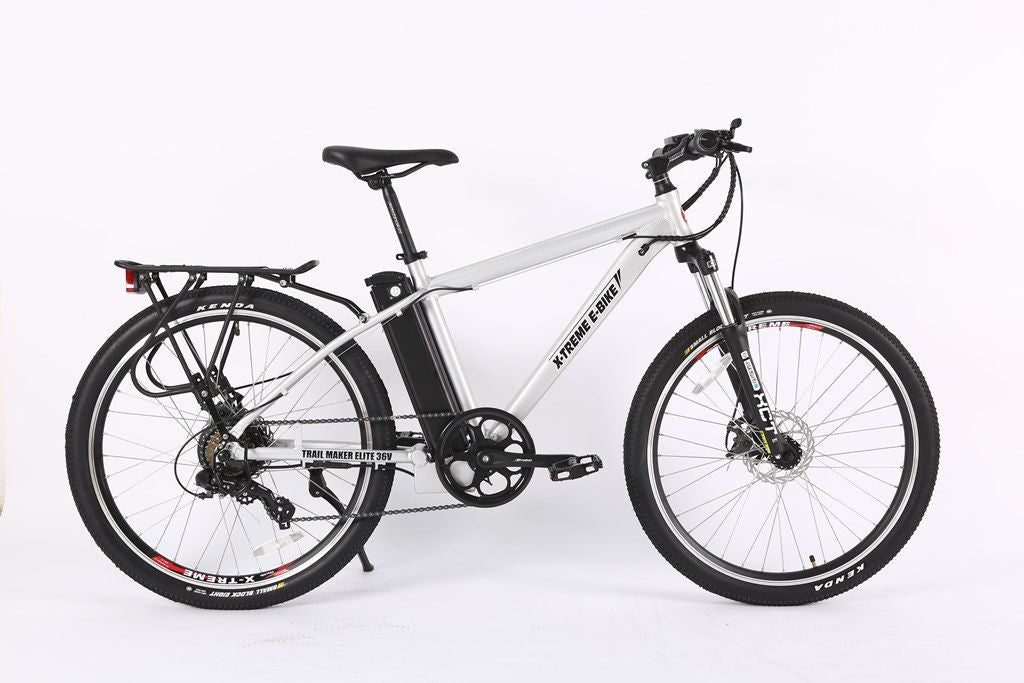

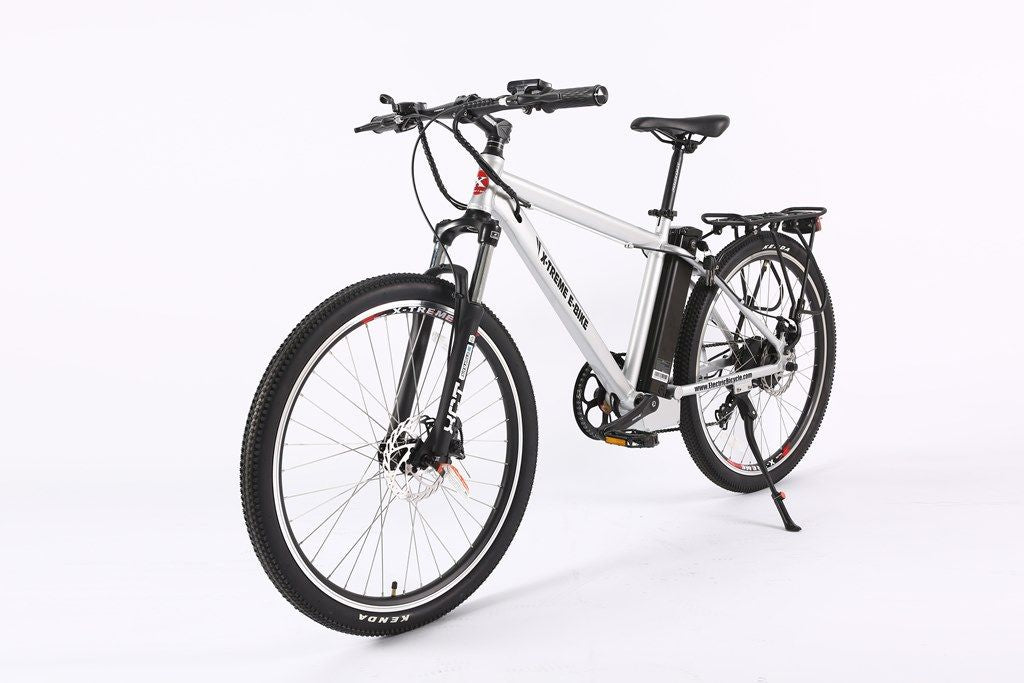

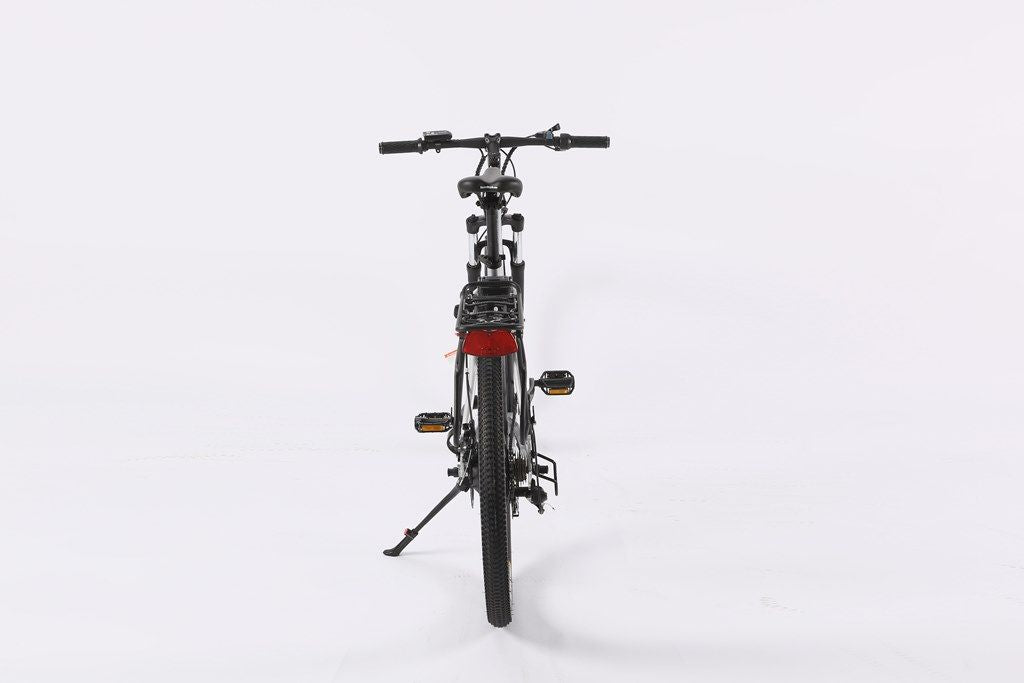

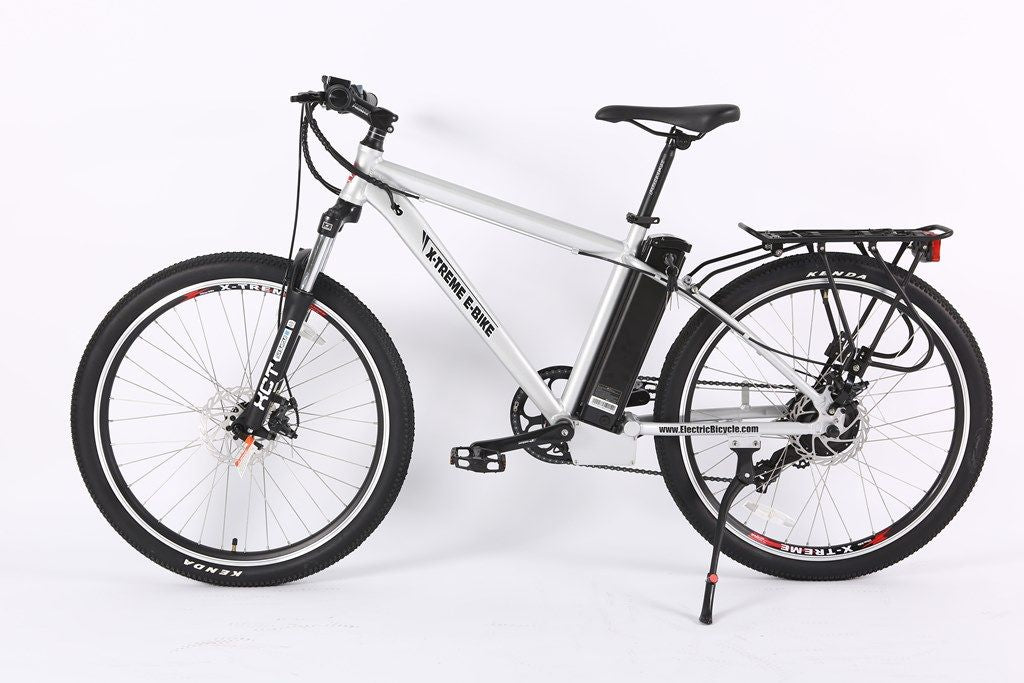

The Trail Maker Elite Max 36 Volt Electric Mountain Bicycle is a Lithium Battery powered Electric Bicycle, running on a 350 Watt Zero Resistance rear hub motor. Made with all top of the line components this model includes a 7 Speed Shimano Tourney® Gears & Shifter System, 7 Lightweight Lithium LiPo4 Batteries, a 100% Aluminum Alloy Frame, fully Adjustable Seat, and a Suntour hydraulic front fork. This bike comes equipped with a LED Panel for the PAS (Pedal Assist System) attached to the handlebars. The PAS provides 4 speed options - Zero (Pedal Power Only), Low, Medium and High.
This electric bicycle will travel 20+ miles per hour for 30+ miles on a single charge and it only takes about 4 hours to recharge the battery. The 36 Volt 10 Amp LiPo4 lithium battery pack is lightweight, compact and mounts to the frame under the seat and is hardly noticeable.
SPECIFICATIONS
| Power | Electric |
| Watts | 350 Watts |
| Amps | 10 Amp Circuit (7 Battery Cells at 10 Amps Each) |
| Volts | 36 Volts (Each Battery Cell is 3.6 Volts) |
| Batteries | 7 Lightweight Lithium LiPo4 Battery Cells in a Sealed Removable Pack |
| Speed | 20+ MPH* |
| Distance | Up to 30+ miles per charge* - can still pedal if charge is lost |
| Tire Size | 26 x 1.95 Inch on Aluminum Wheels |
| Charger | 36V Smart Charger Included |
| Motor |
Zero Resistance Hub Motor - Motor is in center of rear wheel |
| Gears & Speeds | 7 Speed Shimano Tourney® Gears & Shifter |
| Throttle Type | Variable Speed Control - Twist Throttle - or - Pedal & Power Assisted (PAS) - or - Turn Off Power & Pedal Only |
| PAS System | LED Panel with 4 Speed Options - Zero (pedal only)/Low/Med/High |
| Cargo Rack | Yes |
| Frame Type/Size | 100% Aluminum - Very Light Weight - Men's Frame |
| Forks | SA Suntour® XCT Front Forks |
| Suspension | Hydraulic Front Suspension included |
| Braking System | Front & Rear JAK Disk Brakes |
| Drive System | Chain Driven by Rear Hub Motor within rear rim or Pedal Power |
| Head Light | Yes - Battery Operated Snap-On LED (Not covered under warranty) |
| Bicycle Measurements | 72 Inches Wheel to Wheel - 25 Inches Width - 37 Inches to Handlebars - 34 3/4" to 39 Inches Seat Height |
| Carton Size (L x W x H) | 55 x 9 x 28 |
| Bicycle In Box Weight |
63 lbs.
|
| Bicycle Weight | 52 lbs. |
| Suggested Max Weight | 350 lbs. |
| Warranty | 1 Year Warranty & 1 Year Battery Warranty |
| Notes | *depends on rider weight & terrain |
